جديد رافعة لجميع التضاريس Isuzu 4x4 offroad ISUZU NPR cargo truck with 5 tons crane

We Production brand new ISUZU 2tons to 30tons cargo truck with crane.

Chengli Group is the largest special-purpose vehicle manufacturer in China. We can customize ISUZU, FOTON, HOWO, SINO, JAC, SHACMAN, DONGFENG, JMC and other brand trucks according to your needs.

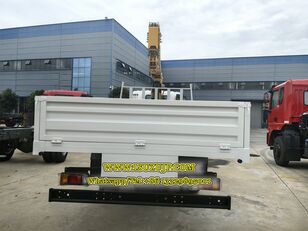

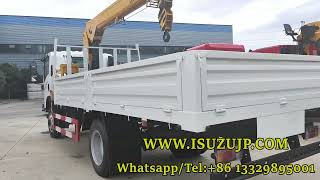

4x4 ISUZU NPR cargo truck with 5 tons crane
Specification:
General Technical Parameters
Overall Dimension 8000X2500X3600 (mm)
Gross Vehicle Weight 15000(Kg)
Curb Weight 6500(Kg)
Chassis Specification
Chassis Brand ISUZU
Drive model 4*4
Cabin Left Hand Driving
Number of Passengers 2
Engine Model 4-stroke direct injection , 6-cylinder in-line with water cooling, inter-cooling, EGR
Power 139KW/190HP
Emission standard EURO VI
Displacement 5193(ml)
Fuel type Diesel
Gearbox 6Forwards & 1Reverse
Brake System Air break
Wheel Base 4175mm
Tire 235/75R17.5
Max Driving Speed 110(km/h)
Cargo box size 5000x2300x500
Technical parameter of crane
Crane Model China brand 5Ton Boom Crane
Crane Weight 2200kg
Max. Lifting capacity 5000kg
Max lifting height 10.6M
Working radius 8.6M
Rotation angle 360° All rotation
Remarks 1.Color is optional
2.Customized LOGO painting as per customer request
